APM-ZWJ-1300QD/1600QD

Model No. APM-ZWJ-1300QD or 1600QD

Weaving Width: 1300 or 1600mm Maximum 2500mm

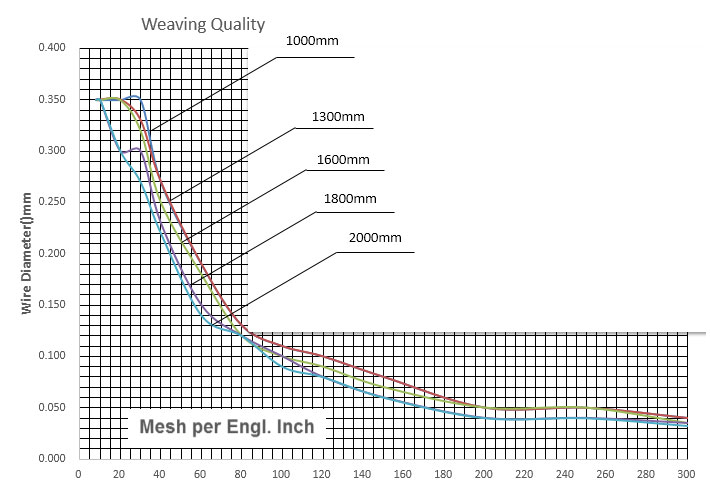

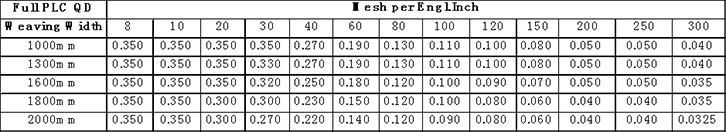

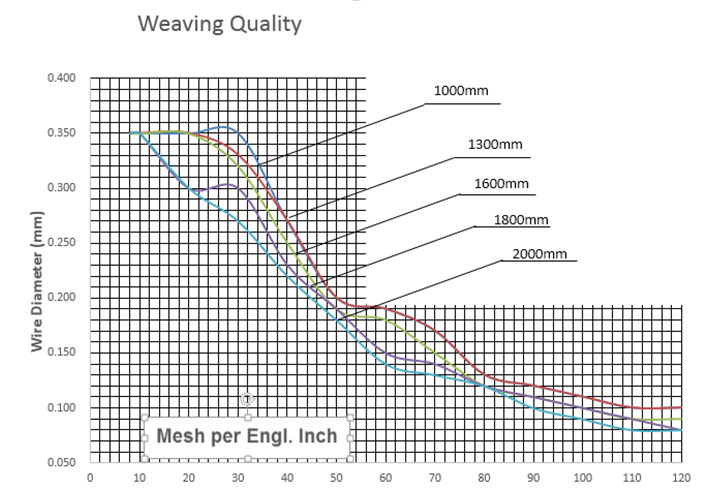

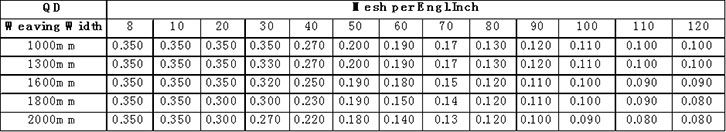

Mesh Range: PW: 8-120mesh and WD:300 PLC Control PW: below 250mesh

Wire Diameter Range: 0.015-0.35mm

Wire Material：Stainless Steel, Copper, Brass, Aluminum, Low Carton Steel or Alloy wire etc.

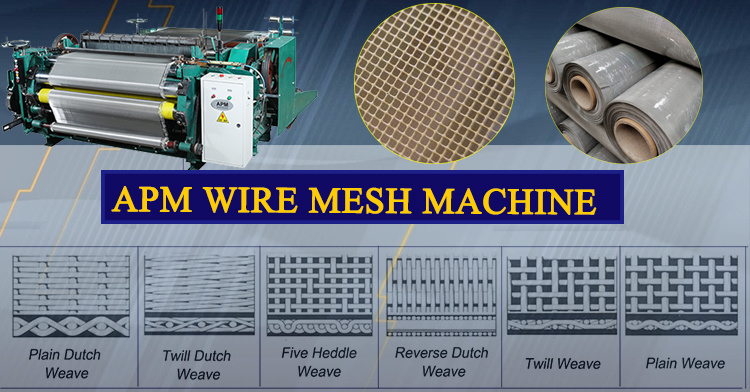

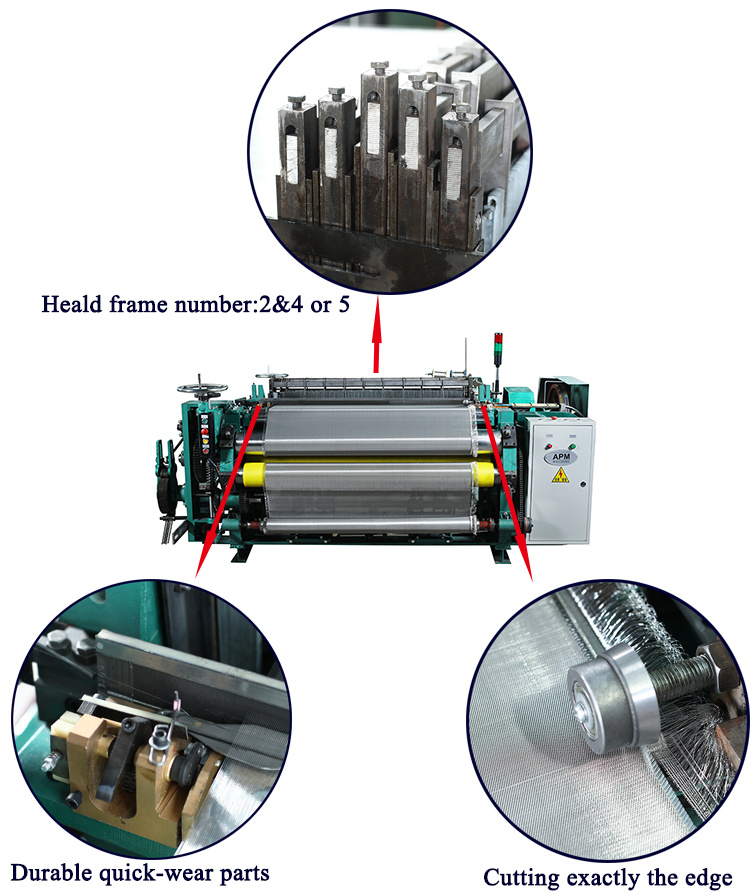

Heald Frame： 2 or 4 or 5

Weaving type： Plain weave, Twill weave, and Dutch weave etc.

Weaving Speed: 60-120time/mins

Main Motor: 2.2Kw or 3.0KW

Weft Insertion: Fiber carbon Rapier, Half Fiber Carbon Rapier or Nylon Rapier by gears or servo Motor.

Warp let-off and Cloth take up: by gears or Servo motor (different weaving range with the different reducer ratio)

Weight 2800kg or 3000kg

Outside Size: 2.7*2.8*1.65mtr or 2.7*3.2*1.65mtr

Machine with the weaving Specification in Plain

Warp and cloth beams of steel tube, with single end drive. But from 1600mm & Q type with double end drive.

Endless cloth beams construction: two PE coating beams and one steel tube can keep the flatting surface of wire mesh and 24hours weaving without any stop. The better weaving range is 40-250mesh with plain weave

Gear Wheel Regulator for accurate mesh adjustment on finest and heaviest weaving. However full PLC control is no need. Servo motor with the reducer control mesh size and the stable tension by calculating the feeding distance and Wire diameter Shrinkage Rate.

Front and Rear Breast Rolls are adjustable so as to adjust the shed correctly. Equipment of front breast roll with smoothing rail is possible.

Control of Heddle Frames by accurately milled cam segments which can be easily exchanged, where by the shed height can always be adjusted suitably for the rapier being used. the Shedders are small and surface of woven screens are smooth. There is not any bright spot, bright trace and other effects on fine screens.

Geared Flywheel Clutch for power return of slay can be supplied, if desired. The operation is made from the weaver’s position.

Slay Drive by toggle lever system; adjustment for single as well as small one beat; shorter rest of slay as the shuttle-less rapier passes through.

Beat-up of Weft Wire at bottom edge of reed.

Shaft Bearings: all heavily loaded or high speed shafts urn in bronze bushes. The driving shaft is provided with ball bearing and the crankshaft with ring lubricator bearings.

Rapier Transmission Mechanism: the Carbon Fiber or Nylon rapier belt with tooth profile rapier band can make the beating-up speed reach 120r/min. and reduce the weaving voice.

CNC rapier : no need selvage wires to solve many weaving defects.
