APM-ZWJ-1300B/1600B

  • Main Technical Parameter
  • Features and Advantages
  • Video
  • Send Enquiry

Model No. APM-ZWJ-1300B or 1600B

Weaving Width: 1300 or 1600mm Maximum width: 2500mm

Mesh Range: PW: 40-600mesh DW:2600mesh

Wire Diameter Range: 0.015-0.30mm

Wire Material:Stainless Steel, Copper, Brass, Aluminum, Low Carton Steel or Alloy wire etc.

Heald Frame: 2 or 4 or 5

Weaving type: Plain weave, Twill weave, and Dutch weave etc.

Weaving Speed: 60-120time/mins

Main Motor: 2.2Kw or 3.0KW

Weft Insertion: Fiber carbon Rapier, Half Fiber Carbon Rapier or Nylon Rapier by gears or servo Motor.

Warp let-off and Cloth take up: by gears or Servo motor (different weaving range with the different reducer ratio)

Weight 2800kg or 3000kg

Outside Size: 2.6*2.8*1.2mtr or 2.6*3.2*1.2mtr

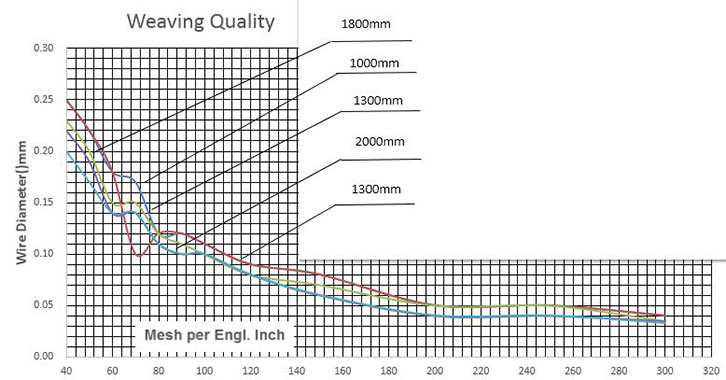

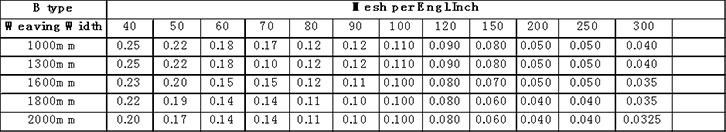

Machine with the weaving Specification in Plain
